Author Topic: Yamaha Nouvo/Nouvo S/Nouvo LC :: V9 MOD da leh tutup  (Read 33019 times)

0 Members and 1 Guest are viewing this topic.

Offline -fazly-

  • Lesen B1
  • ***
  • Posts: 697
  • mysterious
Yamaha Nouvo/Nouvo S/Nouvo LC :: V9 MOD da leh tutup
« on: March 11, 2011, 12:35:57 pm »
versi 1 - You are not allowed to view links. Register or Login
versi 2 - You are not allowed to view links. Register or Login
versi 3 - You are not allowed to view links. Register or Login
versi 4 - You are not allowed to view links. Register or Login
versi 5 - You are not allowed to view links. Register or Login
versi 6 - You are not allowed to view links. Register or Login
versi 7 - You are not allowed to view links. Register or Login
versi 8 - You are not allowed to view links. Register or Login


Salam sejahtera, para pemilik nouvo leh kumpul sini borak2 yg ilmiah dan memupuk semangat kemasyarakatan. Lepak sekali skale kat port mbc pun baek, suai kenal campur gaul.

Lau leh, sile tinggal kan no fon lam ni mane tau panjang langkah sampai tempat korang ke arn? Setakat ni acare sume klaka2 je!

mereka ni aktif lau nak ajak lepak minum borak2 atau nak tau lebey lanjut mengenai nouvo2 ni.
fazly - 0172599565
sarjan - 0123608297
budak sekolah - 0122577269
nyum - 0127386647
doz86 - 0193005790
Is - 0133187751
Azrin - 0132029260
Adam - 0192355102
ANF125 - 0173029220

atau join kami di facebook ---> You are not allowed to view links. Register or Login
You are not allowed to view links. Register or Login

-----------------------------------------------------------------------------------------------------

You are not allowed to view links. Register or Login

Yamaha Nouvo / Nouvo S Specification

Model code: 5LW1
Engine: SOHC 2-valve 4-stroke 115cc Air-cooled engine
Cylinder arrangement: Forward-inclined single cylinder
Displacement: 113.7 cc
Max power: 6.54 kW (8.9 PS) @ 8,000 rpm
Max torque: 8.63 Nm @ 7,000 rpm
Max speed: 120 km/h
Bore x stroke: 50 x 57.9 mm
Compression ratio: 8 . 8 : 1
Transmission: Stepless, V-belt drive
Clutch: Dry and centrifugal automatic
Frame Type: Steel tube, Underbone
Suspension (Front): Telescopic
Suspension (Rear): Swingarm twin-tube shock absorber
Brake (Front): Single-piston disc
Brake (Rear): Drum
Dry weight: 96 / 101 kg
Tires: 70/90-16 / 80/90-16 Sport rims with tubeless tires
Fuel tank capacity: 4.9 liter
Overall length x width x height: 1,935 x 675 x 1,070 mm
Seat height: 755 mm
Wheelbase: 1,280 mm
Minimum ground clearance: 135 mm
-----------------------------------------------------------------------------------------------------

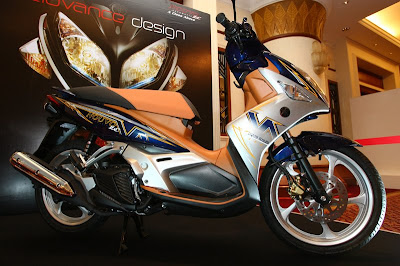

Yamaha Nouvo LC specification :
Engine
Type : Liquid-cooled, 4 stroke, SOHC, 2-valve with DiASil engine block
Displacement : 132.6 cm?
Cylinder arrangement : Single cylinder
Bore x Stroke : 54.0 mm x 57.9 mm
Carburetion : Mikuni BS26/1 type carburettor with TPS system
Compression Ratio : 10.8:1
Power : 8.4kW (11.2 PS)/8,500rpm

Torque : 10.6N-m (1.08kgf-m)/6,500rpm
Final Drive : V-belt drive
Starting system : Electric and Kick duo
Ignition : DC-CDI
Lubrication : Wet sump
Transmission : Stepless CVT (automatic)
Chassis
Frame type : Steel tube / Underbone
Brakes/Front : 220 mm single disc with 1 pot caliper disc brake
Brakes/Rear : 130 mm diameter drum brake
Suspension/Front : Kayaba telescopic fork
Suspension/Rear : swingarm with Kayaba twin-tube shock absorber
Tires/Front : 70/90-16 with 16-inch tubeless alloy wheel
Tires/Rear : 80/90-16 with 16-inch tubeless alloy wheel
Dimensions
Length: 1,950 mm
Width : 678 mm
Height : 1,080 mm
Seat Height : 770 mm
Wheelbase : 1,290 mm
Caster : 26 ?00′
Trail : 110 mm
Fuel Capacity : 4.8 liter
Engine oil capacity : 0.9 liter (dry engine)/0.8 liter (periodic oil change)
Dry weight/Curb weight : 111 kg/128 kg
-----------------------------------------------------------------------------------------------------
You are not allowed to view links. Register or Login

Uploaded with You are not allowed to view links. Register or Login

You are not allowed to view links. Register or Login

Uploaded with You are not allowed to view links. Register or Login



-----------------------------------------------------------------------------------------------------

Care2 buat 1st service

First saya keluarkan/keringkan minyak hitam. Cam biasa, buka bolt A yang biasa tu.

Next,
menyelam ke bawah motor, cari bolt B..
You are not allowed to view links. Register or Login

Then buka pakai spana size 15mm

Ni la rupanya, ada tiga, bolt B, spring, strainer. Dalam gambar ni, spring terpacak atas strainer. Kalau perhatikan, dalam boltB ada bende2 ape ntah tak tau la.

You are not allowed to view links. Register or Login
You are not allowed to view links. Register or Login



Kemudian saya cuci pakai petrol... baru clear:

You are not allowed to view links. Register or Login


Lepas hunggah motor tu sket2, kiri kanan, bagi kuar semua minyak hitam habis2, baru pasang balik bolt2 tu, then tuang minyak hitam baru..

sekian

*Credit to Zulis
-----------------------------------------------------------------------------------------------------

tukar coolant

tools
1-T8
2-T10
3-spanar muncung tirus

kaedah
1-bukak cover radiator
2-buang coolant lame melalui drain plug
3-keluarkan radiator dr motor
4-ketatkan kipas radiator, lau tak bunyi takpe.
5-pasang balik dan tambah coolant sampai penuh.

cost? max rm30
You are not allowed to view links. Register or LoginYou are not allowed to view links. Register or LoginYou are not allowed to view links. Register or LoginYou are not allowed to view links. Register or Login

-----------------------------------------------------------------------------------------------------

-----------------------------------------------------------------------------------------------------
care2 bukak tayar belakang

ok secara rambangnya lebih kurg mcm nie
1-longgarkan skru allen key yg myambungkan manifold exzos+exzos
2-amek spanar 14 utk bukak 3 skru yg mengikat exzos dgn arm
3-cabut exzos
4-spanar 22 utk bukak nut yg mengikat sportrim n arm
5-spanar 12 utk bukak 2 skru pada arm depan
6-cabut arm
7-cabut tayar(xsilap lepas tayar ada satu washer(wasir)
8-spray sportrim mengikut citarasa anda ;)



rumusan
1-1 skru allen key bersaiz 6/8(xingat)
2-3 skru bersaiz 14
3-2 skru bersaiz 12
4-1 nut bersaiz 22

so sediakn tools yg berkaitan
-[color="red"]gunakan spanar ring/O[/color]
-sbb aku dah kena skru jadi bulat,leceh nk kena grind.


*Credit to nYum
-----------------------------------------------------------------------------------------------------
« Last Edit: September 09, 2011, 05:26:31 pm by -fazly- »


Mat Rempit tp Takde Motor

Offline -fazly-

  • Lesen B1
  • ***
  • Posts: 697
  • mysterious
Re: Yamaha Nouvo/Nouvo S/Nouvo LC :: V9 Bersatu Demi Nouvo tercinta
« Reply #1 on: March 11, 2011, 01:00:54 pm »
harap kawan2 dpt share info yg ilmiah je dlm ni. info2 yg memberi manfaat pade user2 lain. kite nak MBC jadi tempat rujukan teknikal untuk pengguna2 lain di masa akan datang.

setiap masalah dgn nouvo anda akan kami tangani tetapi kami akan follow up trouble shoot secare hands on, pegang motor baru tau apa masalah dan kemudian nye jika berjaya menangani masalah tersebut kami akan update info tersebut dlm MBC ini. kami mempunyai beberape bengkel panel untuk merujuk masalah anda dan kami mempunyai hubungan yg akrab dgn stockist parts2 ori yamaha dan juga bengkel yg diiktiraf oleh yamaha so jgn bimbang, semuar brg ori boleh kami sediakan dan khidmat pomen bertauliah juga ada tetapi terus terang cakap harga agak tinggi.

ttg modifikasi, modifikasi tidak terbatas so kalau nak modi, mmg kami ade bengkel untuk modified. show me the money! kate pengusaha bengkel tesebut.

ade ape2 soalan leh bentangkan atau contact any number yg tertera diatas.
Mat Rempit tp Takde Motor

Offline sikatkutu

  • Baru Daftar
  • Posts: 0
Re: Yamaha Nouvo/Nouvo S/Nouvo LC :: V9 Bersatu Demi Nouvo tercinta
« Reply #2 on: March 11, 2011, 01:30:32 pm »
-fazly-  : yup..memang best..pulas ajek tros meluncur..anak2 n wife ako naik pon rasa sronok...insya allah ako pon nak gak bersuai kenal dan nak tau lebih lanjut tentang penjagaan NLC ni dari kekawan Nouvorian nih...

Offline Kamen Rider Decade

  • Lesen B2
  • **
  • Posts: 354
Re: Yamaha Nouvo/Nouvo S/Nouvo LC :: V9 Bersatu Demi Nouvo tercinta
« Reply #3 on: March 11, 2011, 02:28:38 pm »
tumpang lalu~  ;D

Offline -fazly-

  • Lesen B1
  • ***
  • Posts: 697
  • mysterious
Re: Yamaha Nouvo/Nouvo S/Nouvo LC :: V9 Bersatu Demi Nouvo tercinta
« Reply #4 on: March 11, 2011, 06:50:14 pm »
You are not allowed to view links. Register or Login
-fazly-  : yup..memang best..pulas ajek tros meluncur..anak2 n wife ako naik pon rasa sronok...insya allah ako pon nak gak bersuai kenal dan nak tau lebih lanjut tentang penjagaan NLC ni dari kekawan Nouvorian nih...

ok bro! no prob, lau ade pape bitau la k? n lau nak tukar pape bitau la, jgn da tukar baru nak tanye ok ke tak. hehehe, selalu org mcm tu.

sile2, masuk2, belakang lagi. air tu tambah, jgn segan2, wat cam rumah sniri! hehehe
Mat Rempit tp Takde Motor

Offline sikatkutu

  • Baru Daftar
  • Posts: 0
Re: Yamaha Nouvo/Nouvo S/Nouvo LC :: V9 Bersatu Demi Nouvo tercinta
« Reply #5 on: March 12, 2011, 03:26:04 am »
 :D :D

-fazly- : orait tq ...lagi 1, ako ada add ko dalam fesbuk,,,nama ako shamrin..tapi kenkawan bley panggil ako pett ajek..

Offline Raingerz

  • Lesen P
  • *
  • Posts: 6
Re: Yamaha Nouvo/Nouvo S/Nouvo LC :: V9 Bersatu Demi Nouvo tercinta
« Reply #6 on: March 12, 2011, 03:37:15 am »
moto sihat sikat kutu???
Super nova

Offline Raingerz

  • Lesen P
  • *
  • Posts: 6
Re: Yamaha Nouvo/Nouvo S/Nouvo LC :: V9 Bersatu Demi Nouvo tercinta
« Reply #7 on: March 12, 2011, 05:59:23 am »
You are not allowed to view links. Register or Login
ok bro! no prob, lau ade pape bitau la k? n lau nak tukar pape bitau la, jgn da tukar baru nak tanye ok ke tak. hehehe, selalu org mcm tu.

sile2, masuk2, belakang lagi. air tu tambah, jgn segan2, wat cam rumah sniri! hehehe
salam..bro kalo ahad bro naik genting and the gang saya nak follow eh???



nak gak cuba konvoi ramai2 ni.....ni num saya=   0172542708
Super nova

Offline -fazly-

  • Lesen B1
  • ***
  • Posts: 697
  • mysterious
Re: Yamaha Nouvo/Nouvo S/Nouvo LC :: V9 Bersatu Demi Nouvo tercinta
« Reply #8 on: March 12, 2011, 02:32:37 pm »
You are not allowed to view links. Register or Login
:D :D

-fazly- : orait tq ...lagi 1, ako ada add ko dalam fesbuk,,,nama ako shamrin..tapi kenkawan bley panggil ako pett ajek..

orait bro, tp saye tak approve selagi tak jumpe. saye add kawan2 yg mmg penah bersua muke jer sbb ade kes seblom ni. sorry!

You are not allowed to view links. Register or Login
salam..bro kalo ahad bro naik genting and the gang saya nak follow eh???
nak gak cuba konvoi ramai2 ni.....ni num saya=   0172542708

ok jer, tp lately kitorg naik genting jumaat malam. lau ade pape nanti saye bitau la k?
Mat Rempit tp Takde Motor

Offline sikatkutu

  • Baru Daftar
  • Posts: 0
Re: Yamaha Nouvo/Nouvo S/Nouvo LC :: V9 Bersatu Demi Nouvo tercinta
« Reply #9 on: March 13, 2011, 11:56:03 am »
You are not allowed to view links. Register or Login
moto sihat sikat kutu???

moto sehat...bawak pon x laju lagi..maklum la moto baru kuar kedai..speed pon dalam 60 ajek....kekekek

Offline sikatkutu

  • Baru Daftar
  • Posts: 0
Re: Yamaha Nouvo/Nouvo S/Nouvo LC :: V9 Bersatu Demi Nouvo tercinta
« Reply #10 on: March 13, 2011, 11:57:30 am »
You are not allowed to view links. Register or Login
orait bro, tp saye tak approve selagi tak jumpe. saye add kawan2 yg mmg penah bersua muke jer sbb ade kes seblom ni. sorry!


orait..no problemo bro...memahami situasi anda..kekekek

Offline -fazly-

  • Lesen B1
  • ***
  • Posts: 697
  • mysterious
Re: Yamaha Nouvo/Nouvo S/Nouvo LC :: V9 Bersatu Demi Nouvo tercinta
« Reply #11 on: March 13, 2011, 07:52:39 pm »
You are not allowed to view links. Register or Login
orait..no problemo bro...memahami situasi anda..kekekek

hehehe, nak 1st service nanti bg saye servicekan. mau kaa? labour charge free je kawan2. sambil tu leh bro belajar tukar minyak itam sendiri, jimat belanje dlm jangka panjang.

raingers - mari la kenal2, lepak2! hehehe
Mat Rempit tp Takde Motor

Offline Lousy

  • Lesen P
  • *
  • Posts: 50
  • Gero-Gero
Re: Yamaha Nouvo/Nouvo S/Nouvo LC :: V9 Bersatu Demi Nouvo tercinta
« Reply #12 on: March 13, 2011, 10:58:51 pm »
ow !
masuk rumah baru suda .
Lousy :: NouvoS :: JKW 4437

Reporting !  ;D
YNouvoS ---> Belang150R/KLX150s ?

Offline BAEM NLC

  • Lesen P
  • *
  • Posts: 149
  • Rock n Ride. :D XD
Re: Yamaha Nouvo/Nouvo S/Nouvo LC :: V9 Bersatu Demi Nouvo tercinta
« Reply #13 on: March 14, 2011, 09:36:41 am »
wahhh, version 9 dh. bagus2.  :laugh:
Yamaha Nouvo Lc , Yamaha 135Lc , ................?????

Offline sikatkutu

  • Baru Daftar
  • Posts: 0
Re: Yamaha Nouvo/Nouvo S/Nouvo LC :: V9 Bersatu Demi Nouvo tercinta
« Reply #14 on: March 14, 2011, 10:02:02 am »
You are not allowed to view links. Register or Login
hehehe, nak 1st service nanti bg saye servicekan. mau kaa? labour charge free je kawan2. sambil tu leh bro belajar tukar minyak itam sendiri, jimat belanje dlm jangka panjang.

raingers - mari la kenal2, lepak2! hehehe

cantek gak tuh...boley blaja sendri nantik...tq bro...

Offline Raingerz

  • Lesen P
  • *
  • Posts: 6
Re: Yamaha Nouvo/Nouvo S/Nouvo LC :: V9 Bersatu Demi Nouvo tercinta
« Reply #15 on: March 15, 2011, 12:22:31 am »
You are not allowed to view links. Register or Login
hehehe, nak 1st service nanti bg saye servicekan. mau kaa? labour charge free je kawan2. sambil tu leh bro belajar tukar minyak itam sendiri, jimat belanje dlm jangka panjang.

raingers - mari la kenal2, lepak2! hehehe

sy mmg nk pun..nak gak knl2 geng nouvo nlc...kalo boleh sabtu and ahad la..hari biasa sy keje malam..

huhuhu :'( :'(
Super nova

Offline -fazly-

  • Lesen B1
  • ***
  • Posts: 697
  • mysterious
Re: Yamaha Nouvo/Nouvo S/Nouvo LC :: V9 Bersatu Demi Nouvo tercinta
« Reply #16 on: March 15, 2011, 01:37:33 pm »
You are not allowed to view links. Register or Login
sy mmg nk pun..nak gak knl2 geng nouvo nlc...kalo boleh sabtu and ahad la..hari biasa sy keje malam..

huhuhu :'( :'(

sabtu ahad tak pasti, tp setiap jumaat malam 10mlm hingga 5-6pagi mmg kitorg lepak santai or ride.
dgr2 jumaat ni nak gi seremban. jom la, bro balik keje terus pegi. amcam?
Mat Rempit tp Takde Motor

Offline Zycon

  • Lesen P
  • *
  • Posts: 10
  • simple
    • www.Facebook.com
Re: Yamaha Nouvo/Nouvo S/Nouvo LC :: V9 Bersatu Demi Nouvo tercinta
« Reply #17 on: March 16, 2011, 03:12:41 am »
You are not allowed to view links. Register or Login
sabtu ahad tak pasti, tp setiap jumaat malam 10mlm hingga 5-6pagi mmg kitorg lepak santai or ride.
dgr2 jumaat ni nak gi seremban. jom la, bro balik keje terus pegi. amcam?

Kompom ke fazly.. ko turun?? kalo ko turun aku turun.. ade ko best skit.. moto ko cantik.. sdap mata memandang.. hhahahaha ;D ;D :D :D

Offline Raingerz

  • Lesen P
  • *
  • Posts: 6
Re: Yamaha Nouvo/Nouvo S/Nouvo LC :: V9 Bersatu Demi Nouvo tercinta
« Reply #18 on: March 16, 2011, 03:59:19 am »
You are not allowed to view links. Register or Login
sabtu ahad tak pasti, tp setiap jumaat malam 10mlm hingga 5-6pagi mmg kitorg lepak santai or ride.
dgr2 jumaat ni nak gi seremban. jom la, bro balik keje terus pegi. amcam?

sy memang teringin nak pergi bro,tapi time tu la saya keje..

isnin sampai jumaat mmg keje malam pukul 9pm sampai 6am...

x ada rezeki la saya nak ikut... :-[ :-[ :-[
Super nova

Offline -fazly-

  • Lesen B1
  • ***
  • Posts: 697
  • mysterious
Re: Yamaha Nouvo/Nouvo S/Nouvo LC :: V9 Bersatu Demi Nouvo tercinta
« Reply #19 on: March 16, 2011, 01:35:18 pm »
You are not allowed to view links. Register or Login
sy memang teringin nak pergi bro,tapi time tu la saya keje..

isnin sampai jumaat mmg keje malam pukul 9pm sampai 6am...

x ada rezeki la saya nak ikut... :-[ :-[ :-[

ko keje pe? takkan takde shift siang? offday ari ape? takpe, alasan mcm ni da banyak kali dgr. ;D nak turun, turun ye bro. kitorg tak pakse.

You are not allowed to view links. Register or Login
Kompom ke fazly.. ko turun?? kalo ko turun aku turun.. ade ko best skit.. moto ko cantik.. sdap mata memandang.. hhahahaha ;D ;D :D :D

turun atau tak bergantung ape projek jumaat ni. kalau best n kepale best aku on! hehehehe
Mat Rempit tp Takde Motor

Malaysian Bikers Community (MBC)

Re: Yamaha Nouvo/Nouvo S/Nouvo LC :: V9 Bersatu Demi Nouvo tercinta
« Reply #19 on: March 16, 2011, 01:35:18 pm »
